Strymon Conduit MIDI Hub

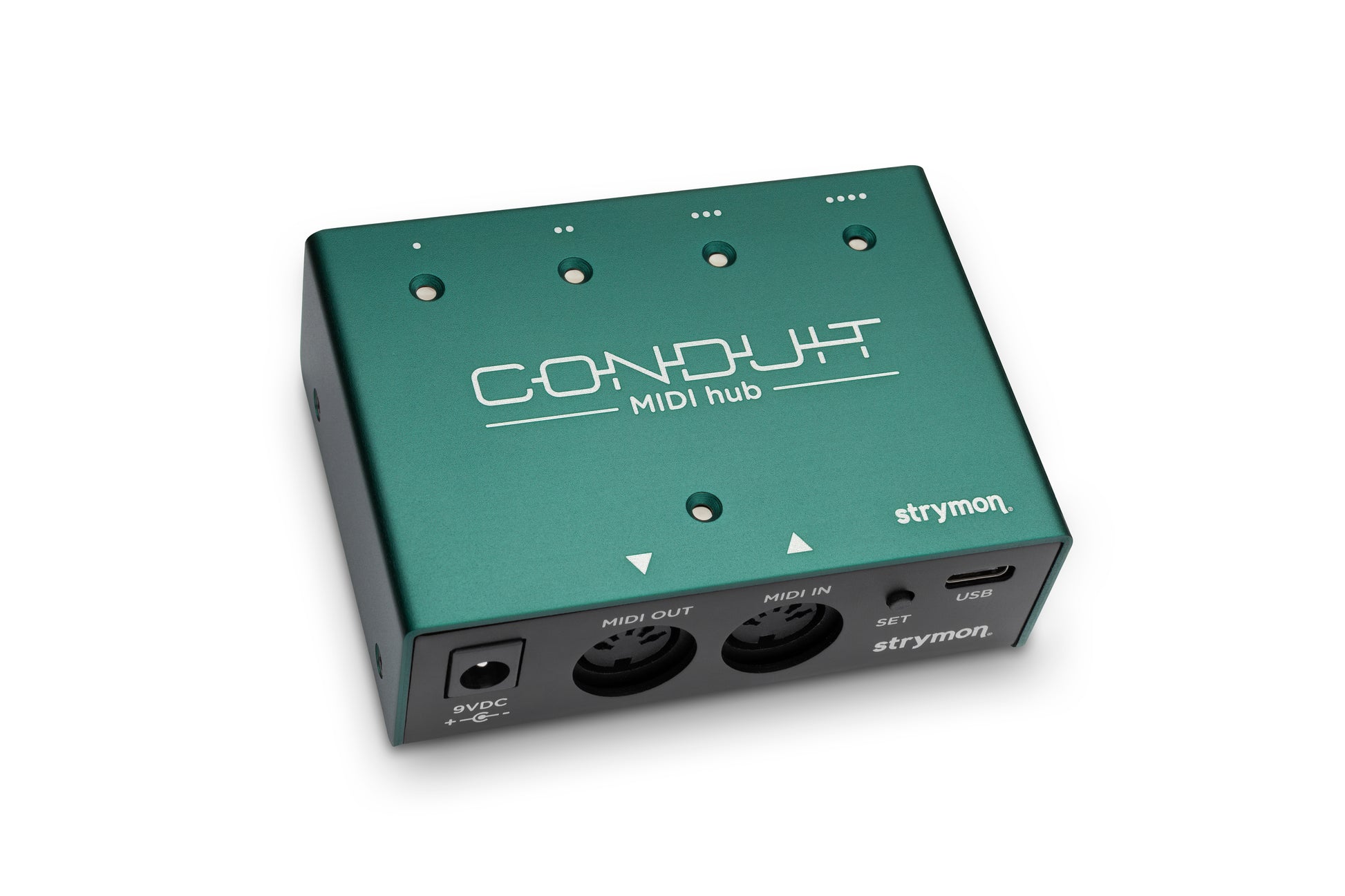

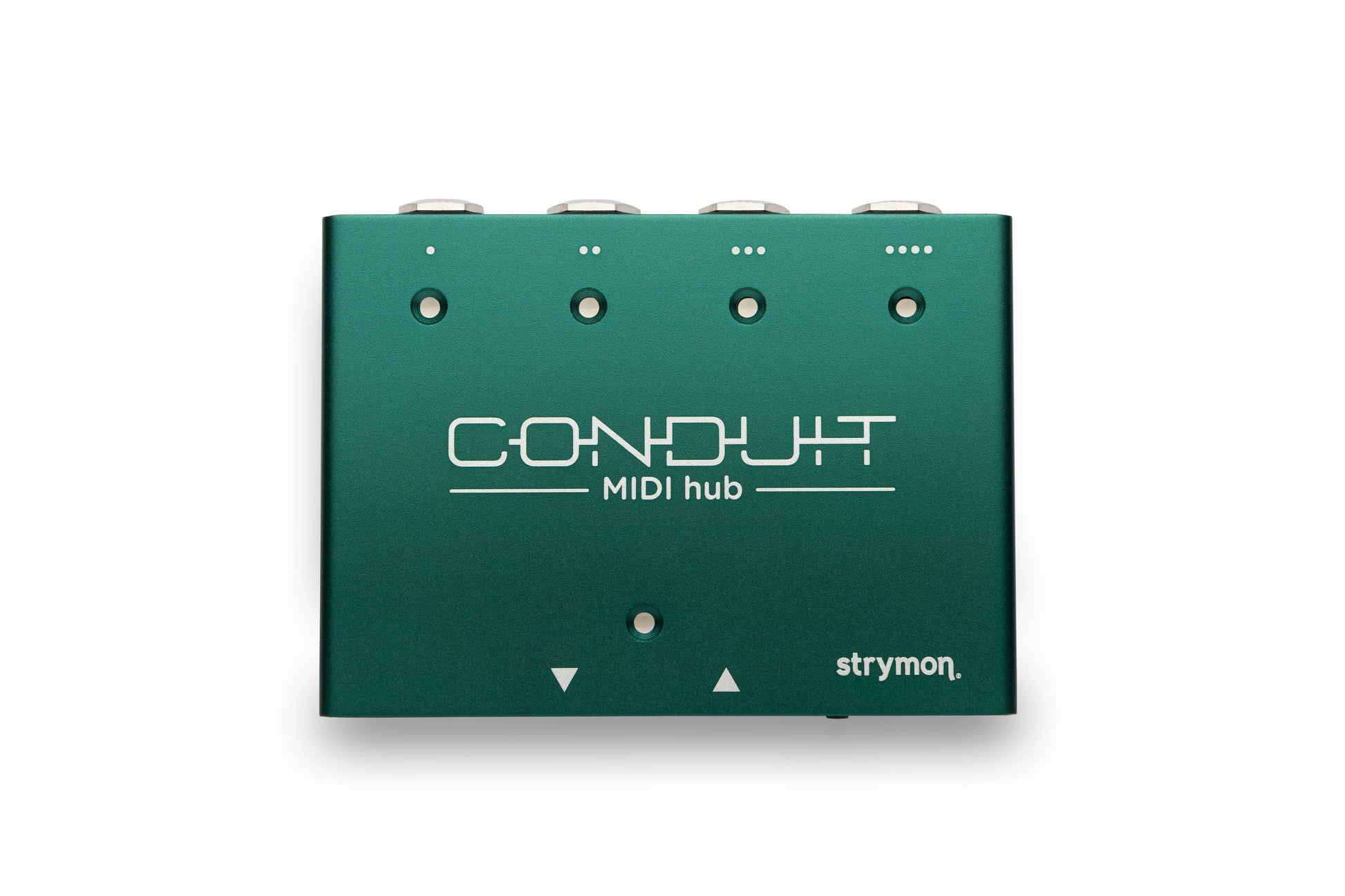

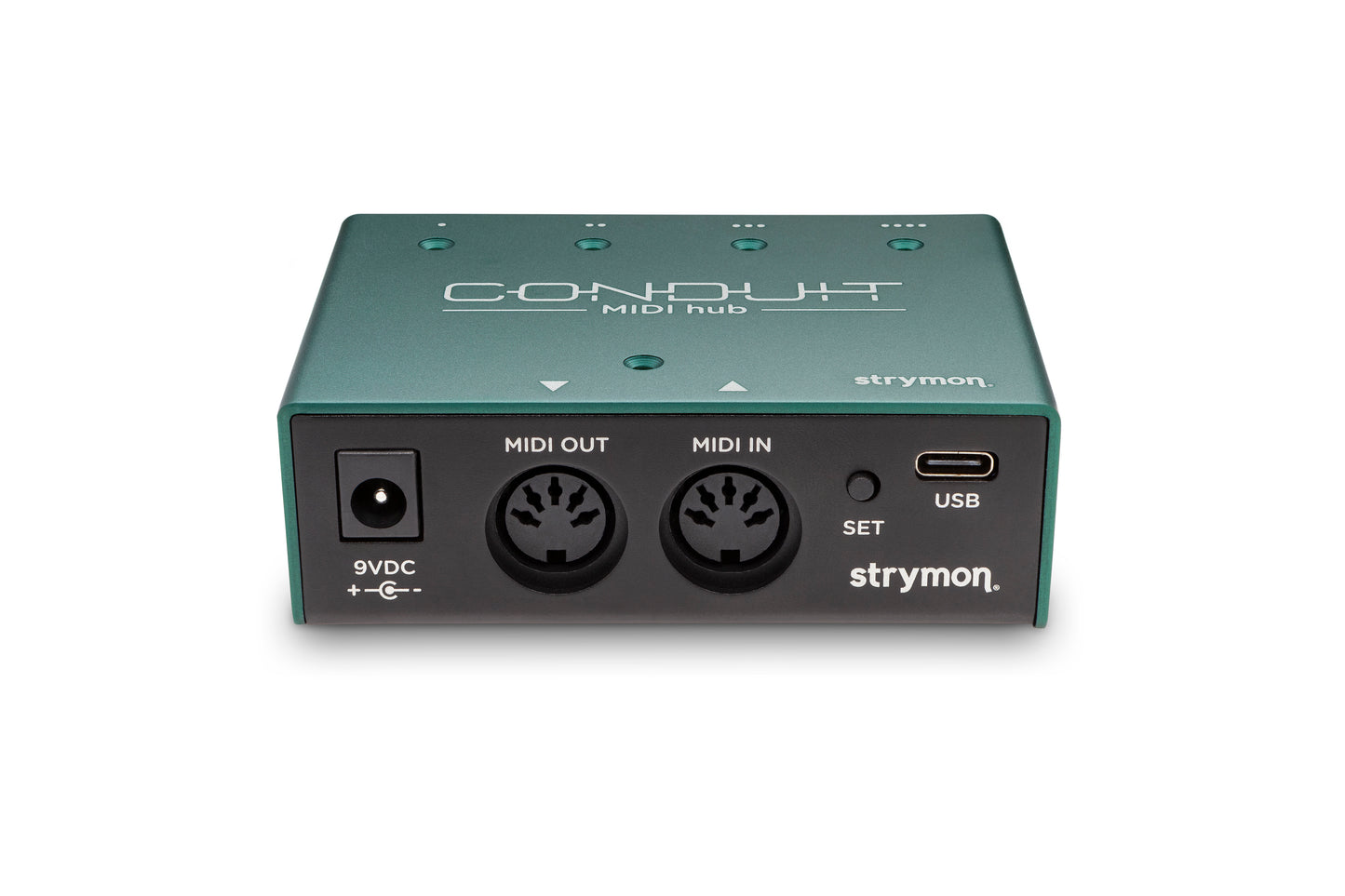

Strymon Conduit – Compact MIDI Hub & Interface
Simple, Powerful MIDI Control for Your Pedalboard.

The Strymon Conduit is a smart, compact MIDI interface and hub designed to bring easy MIDI connectivity to your pedalboard — no menu-diving, no complicated setup. With plug-and-play operation, class-compliant USB MIDI, and multiple 1/4" TRS MIDI outputs, Conduit is the perfect way to integrate and control your MIDI-enabled pedals, including Strymon, Chase Bliss, Meris, and others.

Whether you're sending program changes to multiple pedals, syncing tempo, or building a fully MIDI-controllable rig, Conduit gives you the tools to do it quickly, reliably, and cleanly.

Key Features:

• Plug-and-Play MIDI Hub – No power supply needed when connected via USB

• 4x 1/4" TRS MIDI Outputs – Standard MIDI spec (Type A) connections for pedals

• USB MIDI Interface – Connect to your computer or DAW for direct MIDI communication

• Custom Routing Options – Configure ports independently or mirror across all outputs

• Pedal-Powered – Bus-powered via USB or 9V center-negative input (for standalone use)

• Rugged, Compact Housing – Built for the road and small enough for any board

• Easy Integration – Ideal for Strymon pedals with TRS MIDI (Sunset, Riverside, Iridium, etc.)

What Makes Conduit Unique

Unlike large and complex MIDI controllers, Conduit is built to do one thing exceptionally well: bring straightforward MIDI control to your existing pedals and rig. It's completely class-compliant — no drivers or setup required — and it works out of the box with any software, DAW, or MIDI hardware.

Conduit also offers custom port routing for advanced users: want to send specific MIDI channels to different outputs? Or mirror one device's messages to all? You can configure everything via simple SysEx commands — no extra apps needed.

Technical Specs:

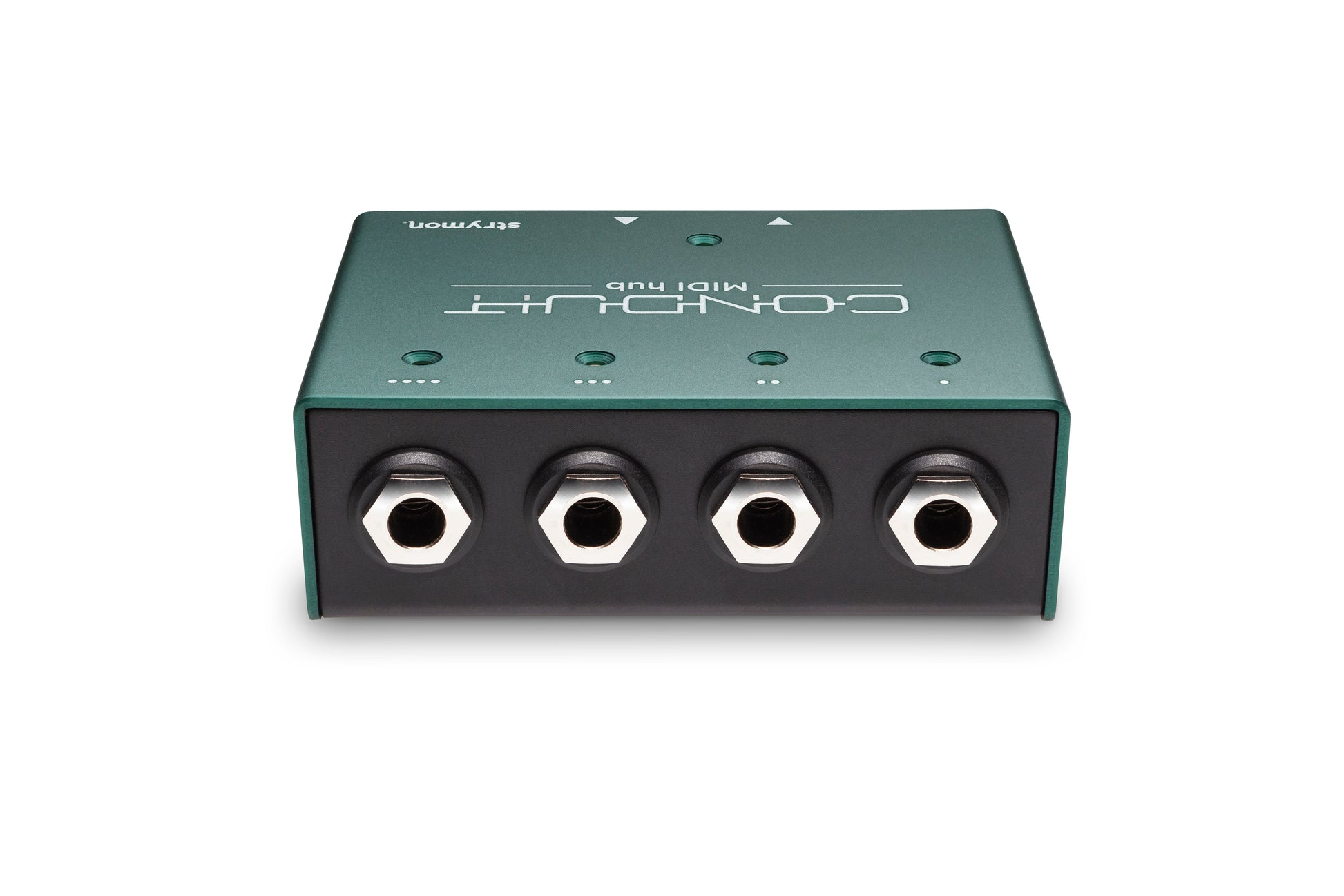

• Outputs: 4x 1/4" TRS MIDI outputs (Type A)

• Input: USB Type-C for MIDI and power

• Power: USB bus-powered or 9V DC (center-negative, 50mA)

• Dimensions: 10.16 × 6.35 × 3.3 cm

• Weight: Approx. 130g

• Construction: Rugged aluminum chassis

• Compatibility: Class-compliant with macOS, Windows, iOS, Android, and most DAWs

Perfect For:

• Guitarists with multiple MIDI-capable pedals

• Users who want to sync presets, tempo, or control multiple effects with one command

• DAW-connected rigs needing real-time pedal control

• Small boards needing clean, organized MIDI routing

Whether you're expanding your setup or streamlining it, the Strymon Conduit makes MIDI control easy, elegant, and reliable — all in a pedalboard-friendly format.
